1240Z-12X40W 4IN1 RGBW Wash Zoom Moving Head
12pcs 40W RGBW LED Wash Moving Head
Technical Specifications
Optics
• Light Source: 12x40W 4in1 RGBW LED

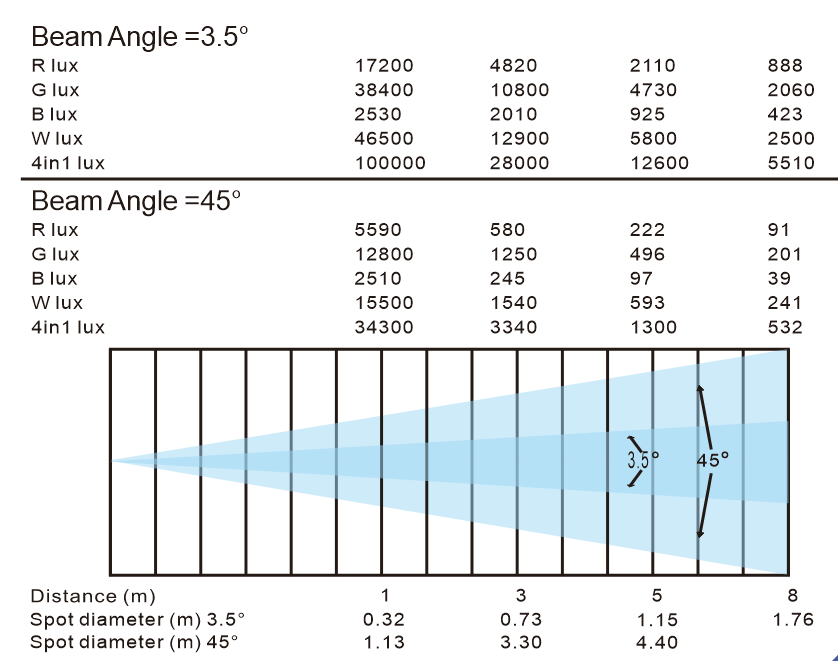

• Zoom Angle: 3.5 - 45 Degrees
• Power Consumption: 380 W
• Power Voltage: AC 100-240 V, 50/60 Hz
Control
• DMX Channels: 16/21 Channel
• Control Modes: DMX512/Master-Slave/AutoRun/Music
Pan/Tilt
• Pan/Tilt: 540° or 360°in optional / 270°
• Pan/Tilt Resolution: 8/16 bit
Construction
• Display:1.8 TFT Colorful Display
• Data In/Out Socket: 3-pin & 5-pin XLR sockets
• Power Socket: PowerCon in/out
• Protection Rating: IP20

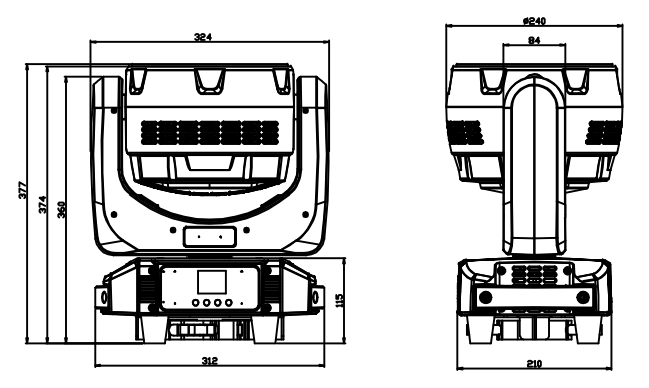

• Dimensions: 324 x 240 x 377 mm
• Net Weight: 9 kg
• Carton Package 2in1 Size: 646 x 415 x 472 mm
• Gross Weight: 24 kg
• Flight Case 4in1 Size: 860 x 580 x 570 mm
• Gross Weight: 73 kg
Features
• Motorized linear zoom system, zoom range: 3.5°~45°
• The outstanding color macro effect
• Dimmer: 0~100% smooth dimming
• Variable strobe effects
• Fast, quiet operation and flicker-free
