19x40W Zoom Wash Moving Head Light for Stage

Short Description:

The 1940Z is one of the most classic moving head wash lights, with the advantages of high brightness and good looks.

It has the following features: 1. Circle control effects, 3 circle control. 2. High-efficiency optical system, wonderful flower effect plus zoom. 3. Fan work speed auto-adjustable with head temperature.


  • Brand: Beyond
  • Model: 1940Z
  • Warranty: 2 Years
  • Email: beyond03@beyond58.com
  • WhatsApp/WeChat: 8613922297736
  • Product Detail

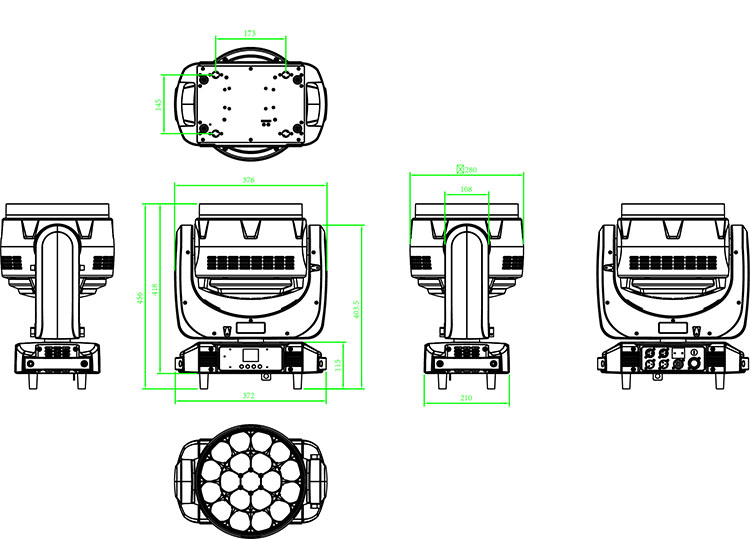

    CAD Chart

    Wash Zoom 19x40W Moving Head with Ring Control

    Technical Specifications

    Light Sources 19*40W 4IN1 RGBW LED
    Average life span> 50000 hours
    Zoom Angle 3.5°- 50°
    Glass light guide + PMMA high quality optical lens
    Power Consumption 630w
    Power factor PF≥0.95
    Power Voltage AC 100-240V, 50/60Hz
    Dimension 376*280*420.5mm
    Net Weight 14.5kg
    Carton package 1in1 size 53.5*39*49.5cm
    Gross Weight 18Kg
    Flight Case 1in2 size 97*46*64cm
    Gross Weight 61.5Kg
    Working temperature -10℃~45℃

    Control
    • DMX Channel:19/27 Channels
    • Control Modes: DMX512/mater-Slave/Auto Run/Music

    Pan/Tilt
    •
    Pan: 540°/ 360°, Tilt: 270°

    • Pan/Tilt Resolution: 8/16 bit

    Construction
    •
    Display:180° reversible 1.8 inch TFT colorful Display

    • Data In/Out socket: 3-pin & 5-pin XLR sockets
    • Power Socket: Power Con in/out
    • Protection Rating: IP20

    Features
    •
    Circle control effects, 3 circle control

    • High-efficiency optical system, wonderful flower effect plus zoom
    • Fan work speed auto adjustable with head temperature
