660DZH-Double Face Moving Head 6x60W RGBW Led Wash Zoom with Strobe Bar Lights

Short Description:

660DZH-Double face moving head 6x60w RGBW Led wash zoom with strobe bar lights, a new type two face bar moving head arrival in 2021. Updated product from single face 6x60W wash zoom, continued pan & tilt movement with no limited rotating. One face is 6 pieces powerful 60W RGBW LED, another face strobe effect equipped with RGB 3in1 LED and 20 pieces high brightness 12W white Led. Excellent heat-disappoint solution, strong beam and pure color wash effect, plus the high brightness strobe, make it to be a multi-functional stage lighting, and can be used for many types of stage effects.


  • Certification: CE,RoHS
  • Warranty: 2 years
  • MOQ: 1 piece
  • Email: beyond03@beyond58.com
  • WhatsApp/WeChat: 8613922297736
  • Product Detail

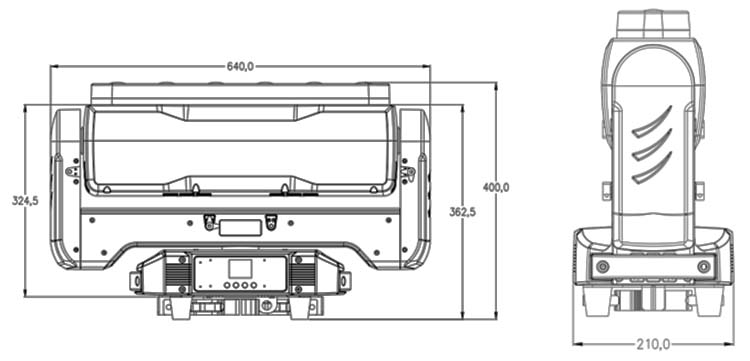

    CAD Chart

    Double Face Strobe & Wash LED Moving Head Bar

    660DZ-尺码图

    Technical Parameters

    Optics
    • Zoom Wash Face Light Source: 6x60W 4IN1 RGBW LED
    • Strobe Face Light Source: 20x10W white LED +384x0.5W 3in1 RGB LED
    • Zoom Angle: 3.5 - 45 Degrees
    • PMMA High Quality and High Output Optic
    • Power Consumption: 700 W
    • Power Voltage: AC 100-240 V, 50/60 Hz

    Control
    • DMX Channel: 34/54 Channels
    • Control Protocol: DMX512/RDM

    Pan/Tilt
    • Pan / Tilt: Infinite Rotation
    • Pan/Tilt Resolution: 8/16 bit
    • Magnetic Coded Reset System is Adopted

    Construction
    • Display:1.8 inch 180° reversible colorful TFT Display
    • Data In/Out socket: 3-pin & 5-pin XLR sockets
    • Power Socket: Power-Con in
    • Protection Rating: IP20
    • Reset the light fixture by menu or console
    • Equipped with Small and easy to operate Pan & Tilt fix lock
    • Net Weight: 19.5 kg
    • Dimensions: 640 mm x 210 mm x 369 mm

    dimension of moving head bar

    • Carton Packing 1in1 Size: 735 mm x 505 mm x 300 mm
    • Gross Weight: 25 kg

    • Flight Case 1in2 Size: 720 mm x 640mm x 600 mm
    • Gross Weight: 72.5 kg

    Product Application Case

    moving head bar

    WorkShop View

    stage ligthing supplier

    Beyond professional lighting exhibitions

    beyond lighting

    Production application case

    应用场景图-压缩后

    Certifications

    certification 1200
