660Z-6x60W Pixel Control Beam Zoom Wash Moving Head LED Bar

Short Description:

660Z-6x60W pixel control moving head bar is an innovative light in high power LED moving head. Linear head with fast infinite rotating, 6 pixels give tight 3.5° beam and widely 45° beam, the intense beam is perfectly combined with the high brightness wash. Both pan and tilt are equipped with a fixed lock to prevent the moving head bar from being damaged during transportation or installation.
Over a 13-month R&D cycle, the Beyond technical team has solved the solution of uniform heat dissipation and balanced-based weight distribution. Each LED can be controlled individually, no matter work as a wash light, effect light, stage outline light, or foreground light, it can be wonderful showed.

Brand: Beyond

Model: 660Z

Warranty: 2 Years

Email: beyond03@beyond58.com

WhatsApp/WeChat: 8613922297736

Send email to us Product Manual

Product Detail

6x60W LED Pixel Control Beam Zoom Wash Moving Head Bar

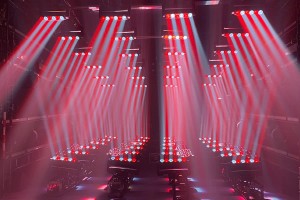

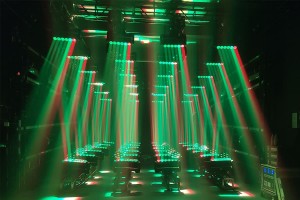

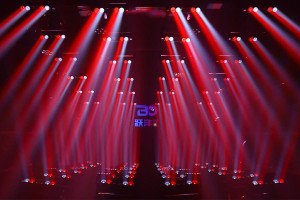

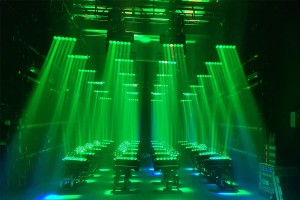

As soon as this moving head bar was launched on the market, it was warmly loved by customers. It has 6 pieces of high-brightness LED with a super narrow 3.5° angle, giving a wonderful blade beam effect. Fast movement and pan & tilt is 360° infinite rotation, can program dazzling effects on stage. Max 45°widely beam angle has a good wash effect. It suits beam, wash, pixel light, or effect light.

Technical Parameters

Optics
• Light Source: 6x60W 4IN1 RGBW LED
• Zoom Angle: 3.5°- 45°
• Power Consumption: 380 W
• Power Voltage: AC 100-240 V, 50/60 Hz

Control
• DMX Channel: 25/45 Channels
• Control Modes: DMX512/Master-Slave/AutoRun/Music

Pan/Tilt
• Pan / Tilt: Infinite Rotation
• Pan/Tilt Resolution: 8/16 bit

Construction
• Display: 180° reversible TFT Display
• Data In/Out socket: 3-pin & 5-pin XLR sockets
• Power Socket: Powercon in & out
• Protection Rating: IP20
• Net Weight: 17.5 kg

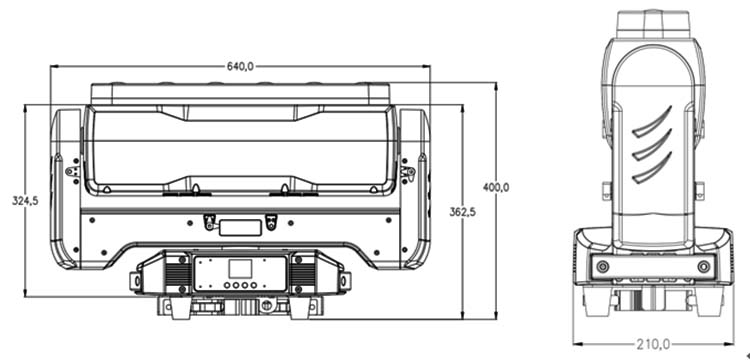

• Dimensions: 640 mm x 210 mm x 400 mm
