760BH-7x60W Beam Wash and Bee Eye Effect Led Moving Head

Short Description:

760BH-7x60W beam wash and bee eye effect led moving head in hot sales,same develop story as 19x40w bee eye, then shared same design, body, product technology. 7x60w benefit of its big lens can give better beam effect. In a good smoke environment, some clients even said it single led beam effect looks like 150W beam. As two of the best-selling series products in beyond lighting, their monthly production quantities can reach 800-1000 pieces.Plus our design, technology, process improvement, them have pretty good stability and performance. Also usually are in fast delivery, as mostly time we keep them stock available.

Certificiation: CE, RoHS

Warranty: 2 years

MOQ: 1 piece

Email: beyond03@beyond58.com

WhatsApp/WeChat: 8613922297736

Send email to us Product Manual

Product Detail

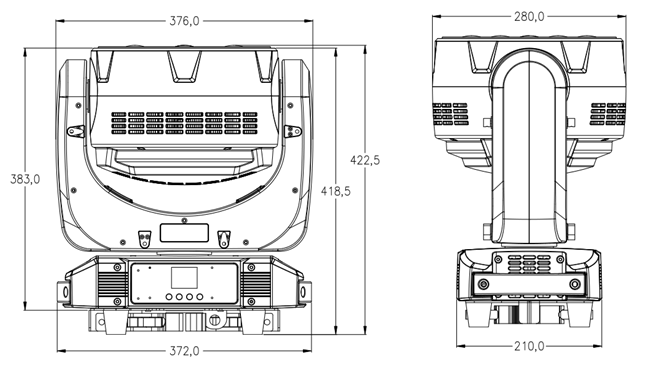

CAD Chart

7x60W Rgbw Led Bee Eye Moving Head Wash Light

Led single control with a mapping pixel effect, rich build-in program, and 7 DMX channel modes to meet the programming needs of different scenarios. Three-phase motors give accurate positioning and fast & quiet operation. 33200 lux @5M in a narrow beam angle of 3 degrees. Have practical experience in various large-scale stage performances

Technical Parameters

Light Sources	7x60W 4IN1 RGBW LED
Beam Angle	3.5°- 45°
Power Consumption	410w
Power Voltage:	AC 100-240V, 50/60Hz
Net Weight	17.5 Kg
Gross Weight	20.5 Kg

Control
• DMX Channel: 21/23/35/42/49/51/56CH
• Control Modes: DMX512/mater-Slave/AutoRun/Music

Pan/Tilt
• Pan : 540°/ 360°， Tiit : 270°
• Pan/Tilt Resolution: 8/16 bit

Construction
• Display:180° reversible TFT Display
• Data In/Out socket: 3-pin & 5-pin XLR sockets
• Power Socket: Powercon in/out
• Protection Rating: IP20

Features
• LED single control
• The outstanding color macro effect
• Fast, quiet operation and flicker-free
• High-efficiency optical system, wonderful flower effect plus zoom
• Led temperature protection & Fan run speed automatically based on the head temperature.

LUX Date

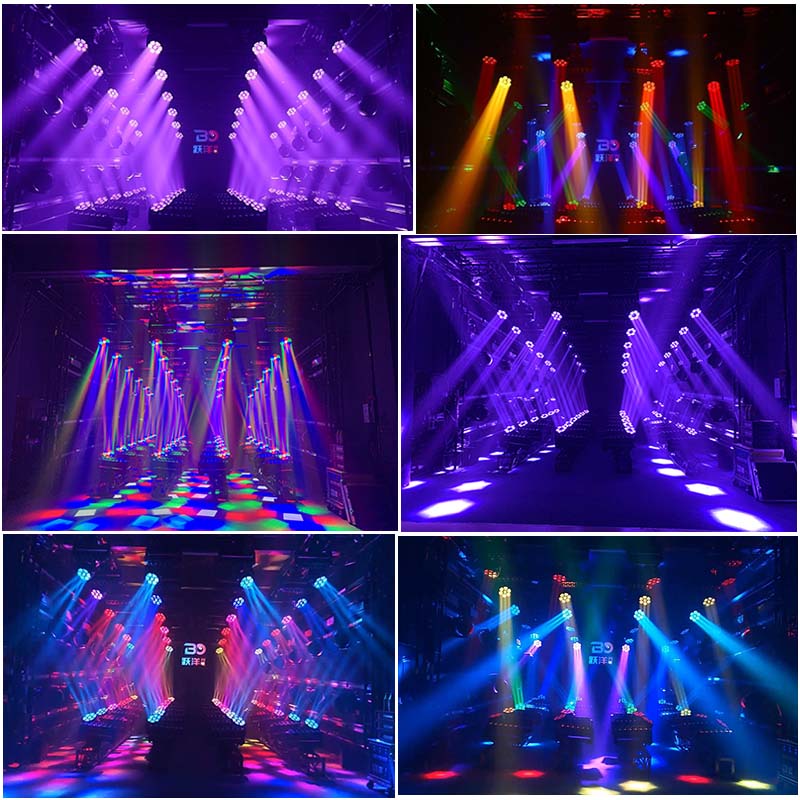

Product Effect

FAQ

Q: Which one is your best-selling?

RE: Caused mostly products are designed by ourselves and private lights so actually have many fixtures are selling hot in market. It depends on what type business and market you are focus in. I’d like to give you more recommend if let me know more information about you.

Q:How many workers in your factory?

RE: Around 100 workers so far, each week have one day rest, all staff are good-trained

Q:Can I get my logo on products?

RE: yes, it depends on the order quantities
