Beyond 1060ZW IP65 1060W Zoom+1201W Moving Bar

Short Description:

Beyond 1060ZW IP65 10*60W Zoom+120*1W Moving Bar, Comprehensive optical domain dimming with an accuracy of 65,536 levels; Rapid strobe frequency ranging from 1 to 25 Hz; Individual LED control; Central LED bead can be controlled independently, with 20-section control available on either side; It incorporates a 3-in-1 effect encompassing wash, beam, and strobe functionalities; Various preset color macro functions and multiple preset effect macro functions are included.

Brand: Beyond

Model: 1060ZW

Warranty : 2 Years

Email: beyond03@beyond58.com

WhatsApp/WeChat: +86 13922297736

Send email to us Product Manual

Product Detail

Features:
Full optical domain dimming, 65536-level dimming accuracy;
Fast strobe 1~25Hz;
LED Single Control;
Single control of the LED bead in the middle, 20-section control on both sides; It integrate 3in1 effect of wash, beam, and strobe;
Multiple presets color macro function; preset multiple effect macro functions

Technical Specifications

Light Sources:
Middle:10*60W 4IN1 RGBW LED
Both sides:120*1W RGBW 4in1 LED
Average life span> 50000 hours
Beam Angle: 3.5°- 45°
Glass light guide + PMMA high-quality optical lens
Power Consumption: 780W土5%
Power Voltage: AC 100-240V, 50/60Hz

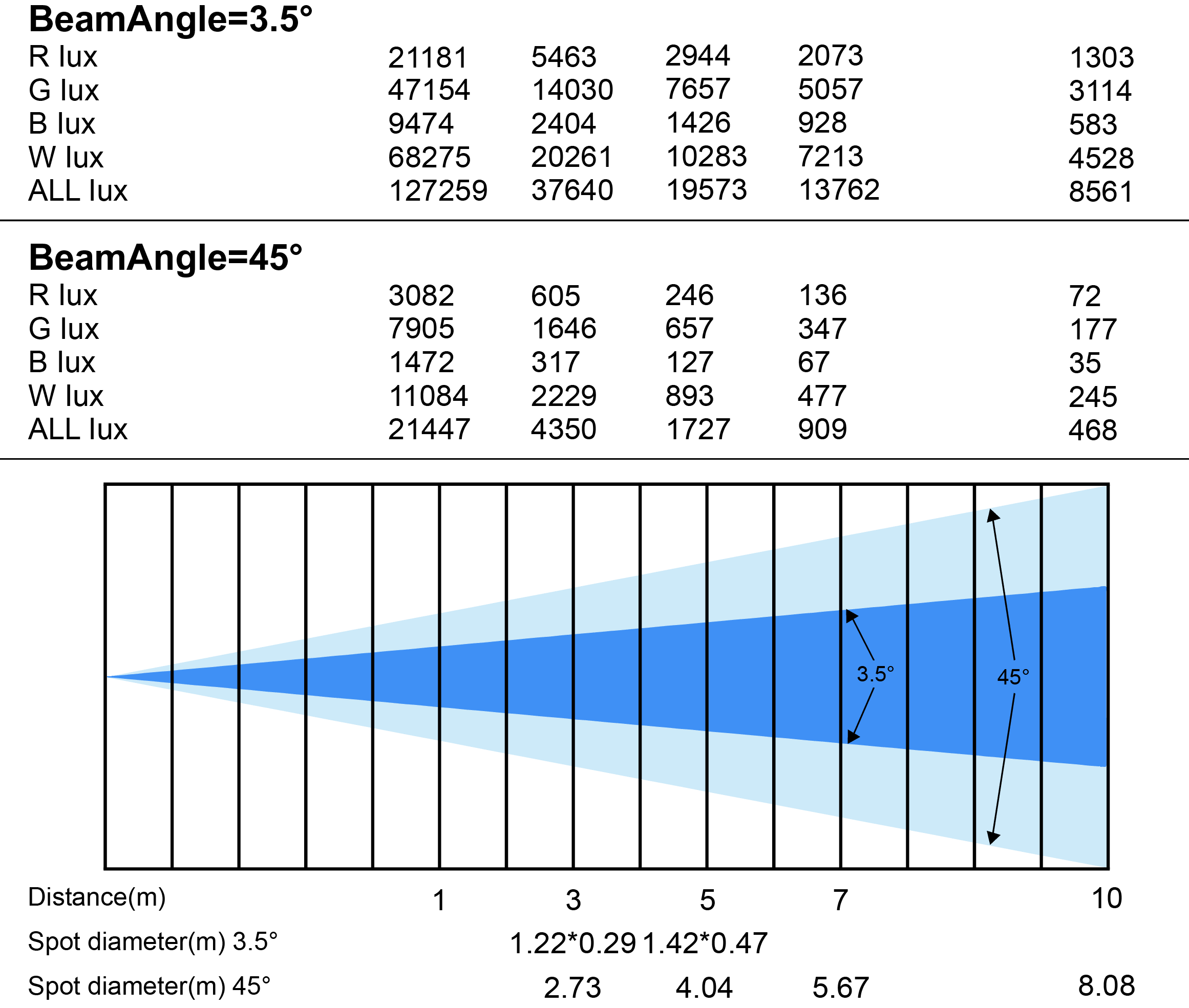

1060ZW LUX Data

Control:
DMX Channel: 26/35/43/91/125/120CH
Control Modes: DMX512/Master-Slave/Auto Run/Music/RDM

Tilt:
190°, accuracy 0.4°/step, fine-tuning accuracy: 0.0034°;
Using magnetic coded reset system

Construction:
Display:1.8 inch TFT color display with 180° reversible ,

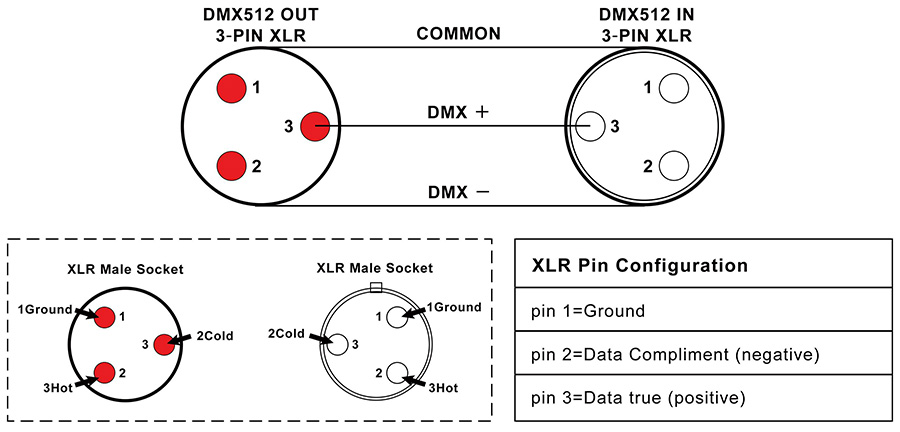

Data In/Out socket: 3-pin XLR sockets
Protection Rating: IP65

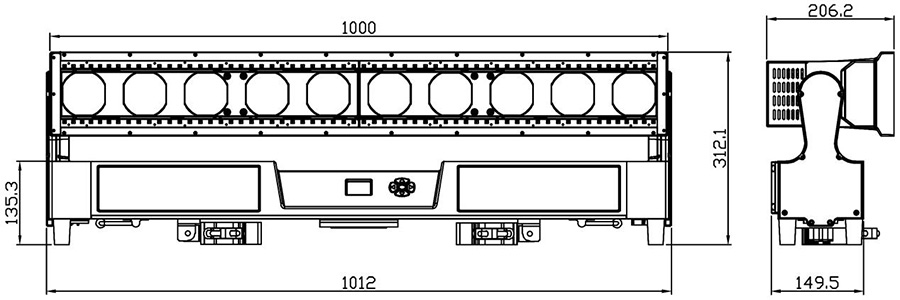

Dimension: 1012*149.5*363mm
Net Weight: 28.7 kgs
Carton size:1140*310*510mm
GW: 35.7kg
Flight case packing 2in1 size: 1100*590*580mm
Gross Weight: 87.1kg
