Beyond F400 400W LED Zoom Surface Moving Light
Features:
Menu or console control lamp reset
0-100% dimming; constant current drive mode
temperature sensor detection
intelligent adjustment of light source power
lamp information query
intelligent fan speed regulation
Beyond F400 400W LED Zoom Surface Moving Light
Technical Specifications
Light Sources: 400W LED
Beam Angle: 7°~ 53° Power Consumption: 405W±5%
Power Voltage: AC 100-240V, 50/60Hz
Color System: White light (Ra95) + CTO (linear color temperature)
Color temperature: 3200K-5800K

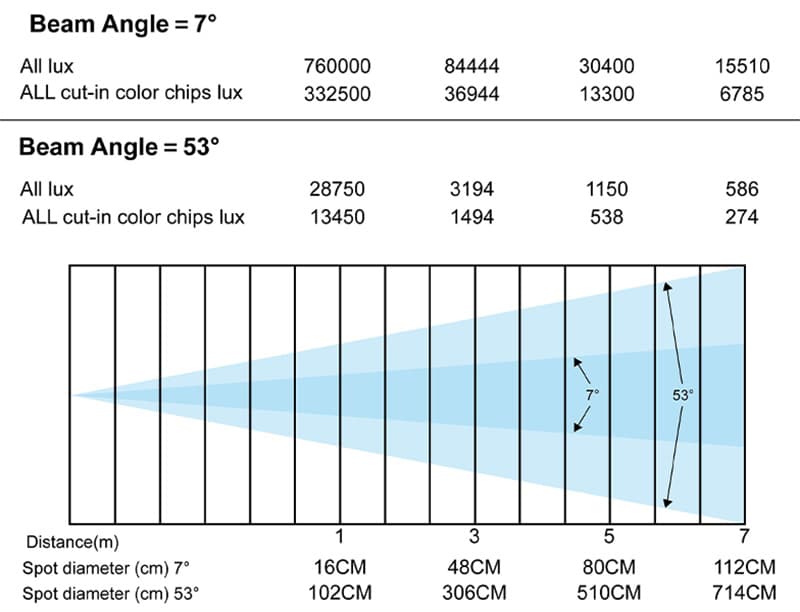

F400 LUX Data
Maximum number of connections:
8 units (220V, 50Hz) 2.5mm² power cable
4 units (90V, 60Hz) 2.5mm² power cable
Control:
DMX Channel: 11 /13CH
Control Modes: DMX512/Master-Slave/Auto Run/Music/RDM
Pan/Tilt:
Pan/Tilt: 540°/ 250° 0.3°/step, fine-tuning accuracy: 0.0034°;
Using magnetic-coded reset system
Construction:
Display: 1.8 inch TFT color display with 180° reversible

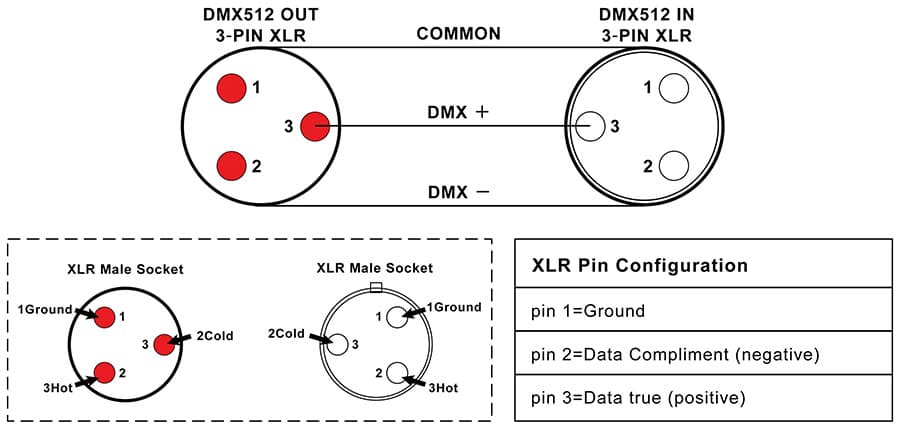

Data In/Out socket: 3-pin XLR sockets
Power Socket: Power con in/out
Protection Rating: IP20

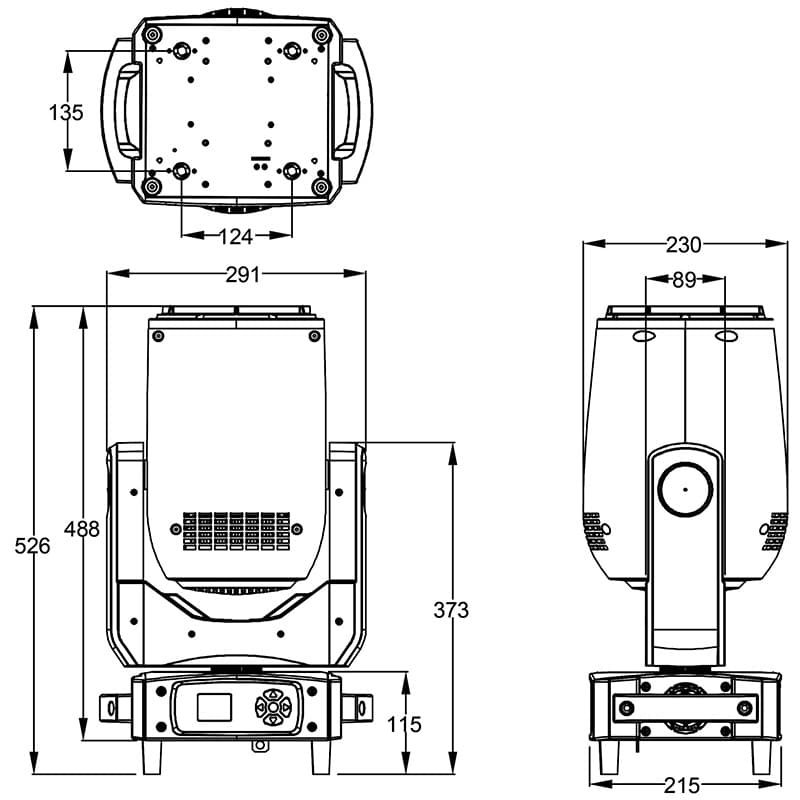

Dimension: 306*230*526mm
Net Weight: 10.2kg
Flight case packing 4in1 size: 820*710*740mm
Gross weight: 85.5kg
Carton package 1in1 size: 610*320*380mm
Gross weight: 11.8 kg

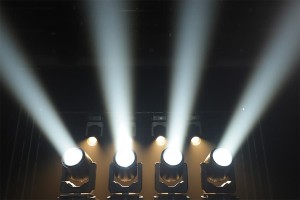

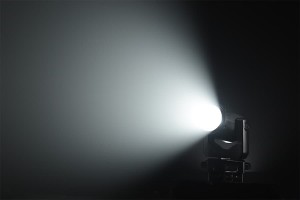

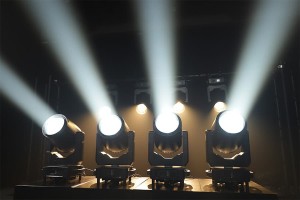

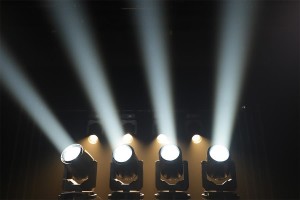

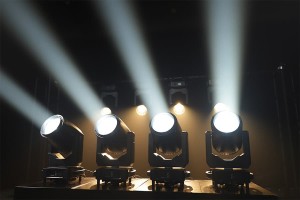

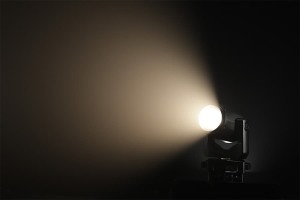

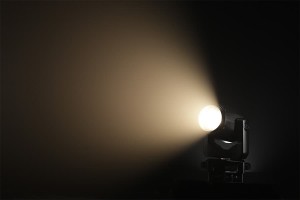

Beyond F400 Lighting Show
