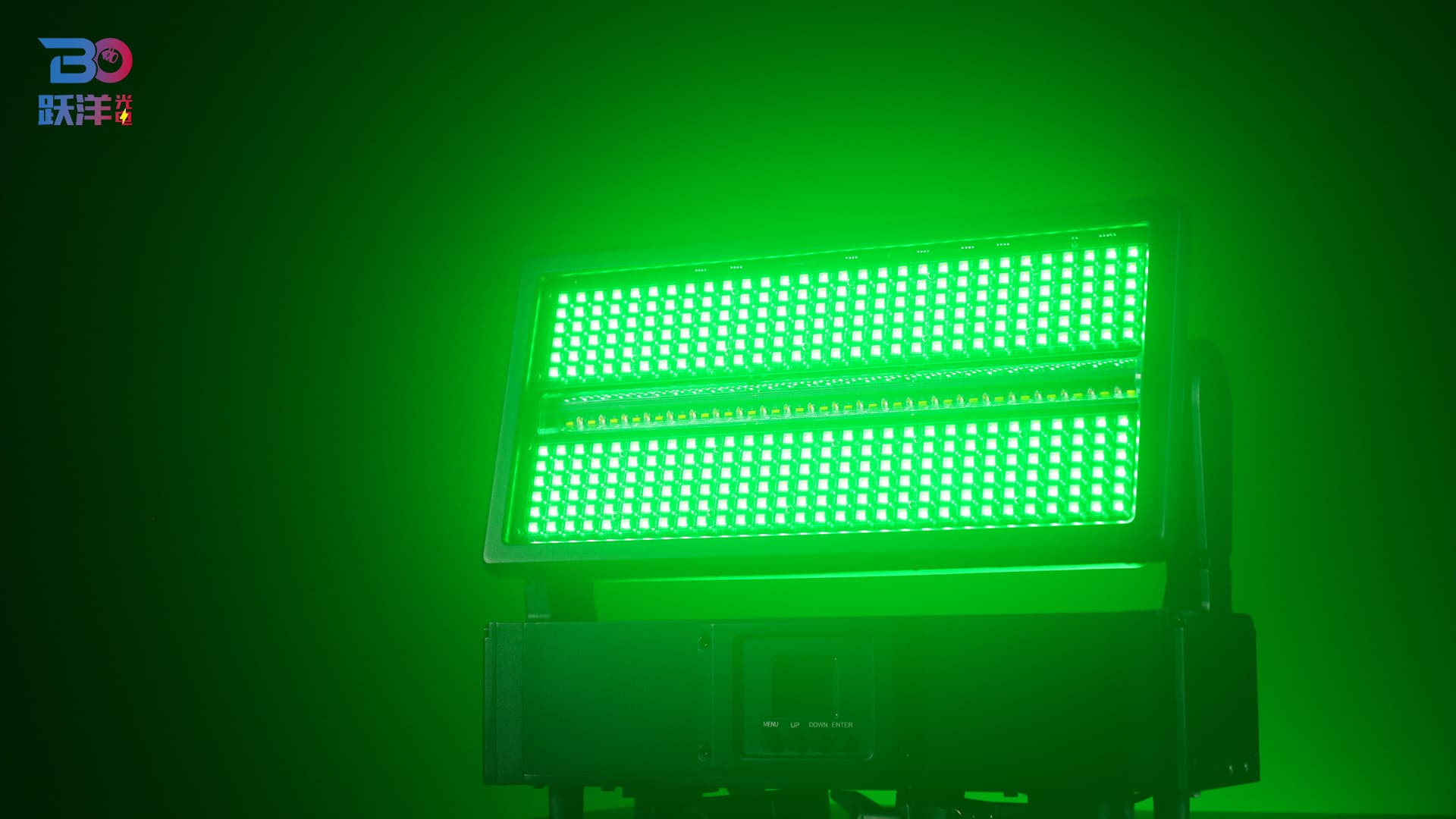

Beyond S1000 IP65 LED Moving Strobe Light

Short Description:

Beyond S1000 IP65 LED Moving Strobe Light is a super effective strobe light, different from other’s white color middle strobe & RGBW side strobe, our S1000 uses 24*10W White LED+24*8W RGBS 4in1 LED as the middle strobe to create a more colorful strobe effect and pixel running effect. And it’s Pan 190 degree movement, an IP65 waterproof structure, so you can use it anywhere.

Brand: Beyond

Model: S1000

Warranty: 2 Years

Email: beyond03@beyond58.com

WhatsApp/wechat: +86 13922297736

Send email to us Product Manual

Product Detail

Beyond S1000 IP65 LED Moving Strobe Light

Technical Parameters

Optics:

• Light Sources: Middle 24*10W White LED+24*8W RGBS 4in1 LED; Both sides 360*1W RGBA 4in1; Lamp life: ≥50000 hours
• Beam Angle: 120°,Tempered glass + PMMA high quality optical light guider
• Color System: W+RGBS 4in1 +RGBW 4in1 LED
• Input Voltage: AC100-240V, 50-60Hz
• Full Power :450W±5%,Power factor PF≥0.95

Control:

• DMX Channel: 24/31/39/82CH
• Control Modes: DMX512/Master-Slave/Auto Run/Music/RDM

Tilt:

• Tilt:190°, accuracy 0.86°/step, fine-tuning accuracy: 0.0034°;
• Adopt magnetic sensitive response reset system control and programming

Construction:

• Dimension: 420mm×163mm×347mm;
• Menu display: 1.8-inch TFT color display; Chinese and English can be switched at will, and the font can be reversed 180° display;
• Data In/Out socket: 3-pin sockets
• Protection Rating: IP65
• Working temperature: -10℃～45℃

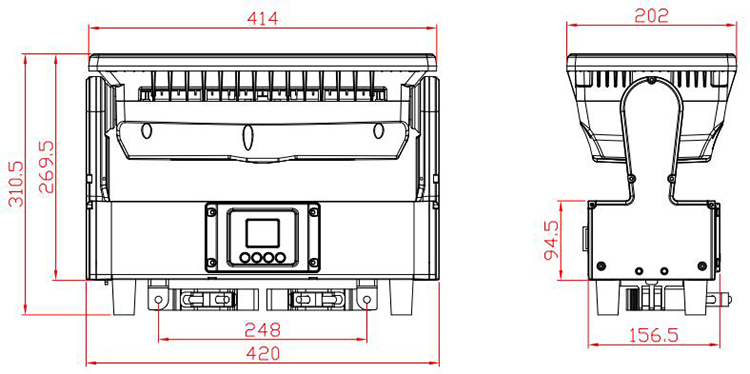

Beyond S1000 IP65 LED Moving Strobe Light Products Size

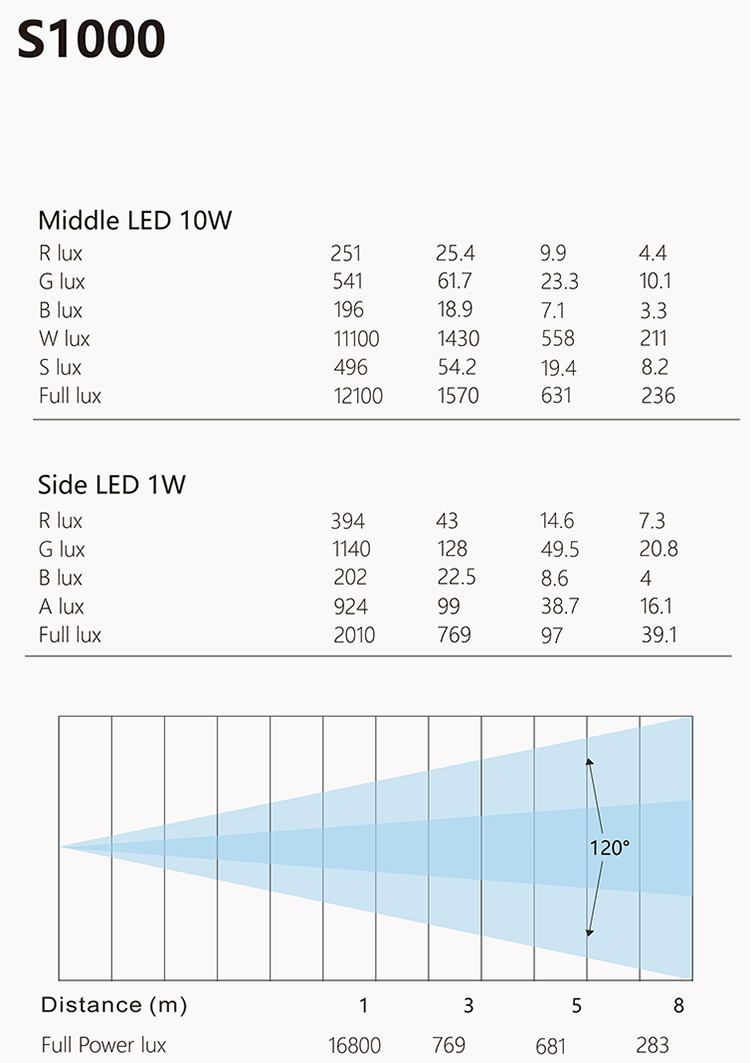

LUX Date:

Effect configuration:

Full optical domain dimming, 65536-level dimming accuracy;
Fast strobe 1~25Hz;

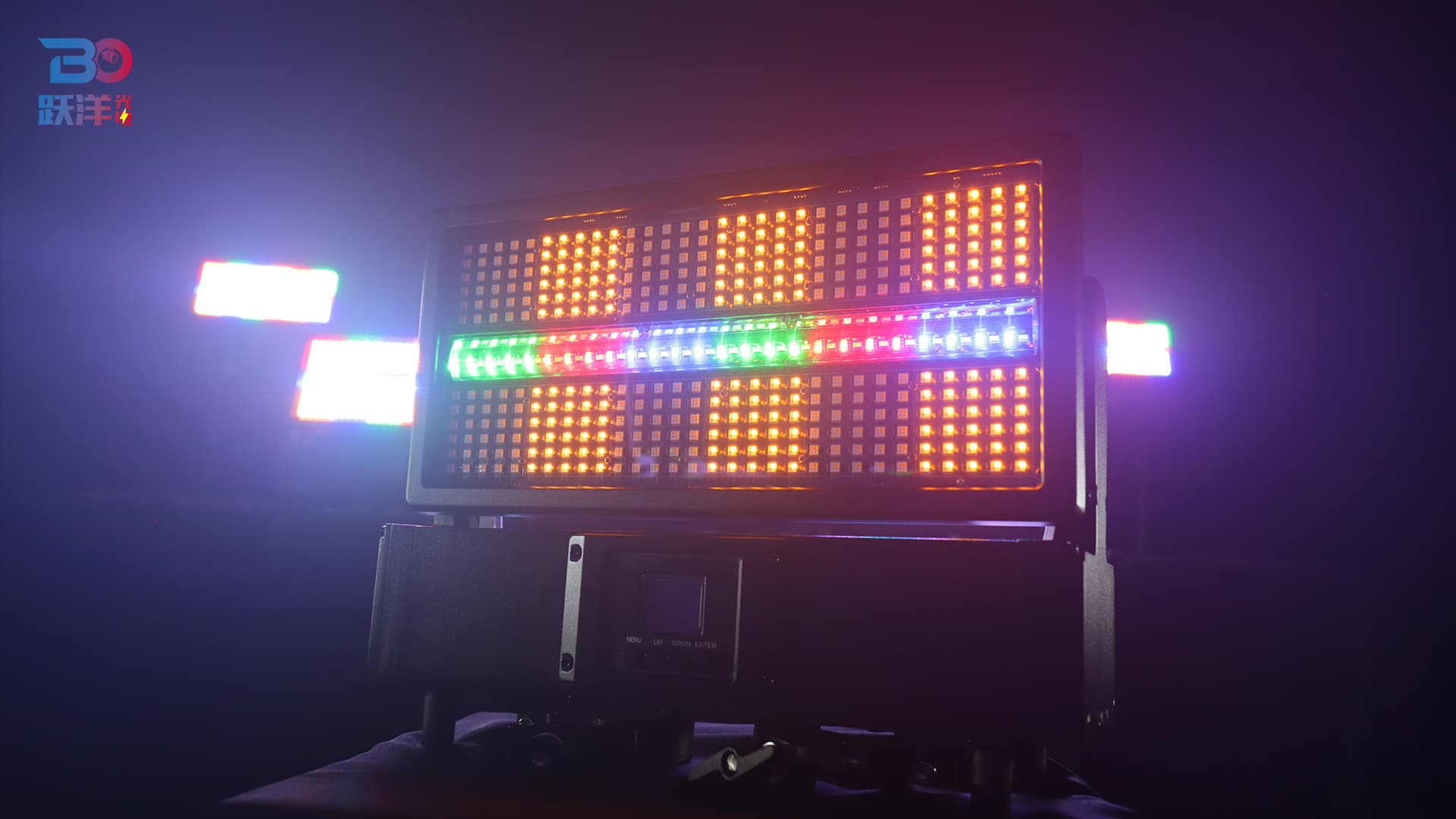

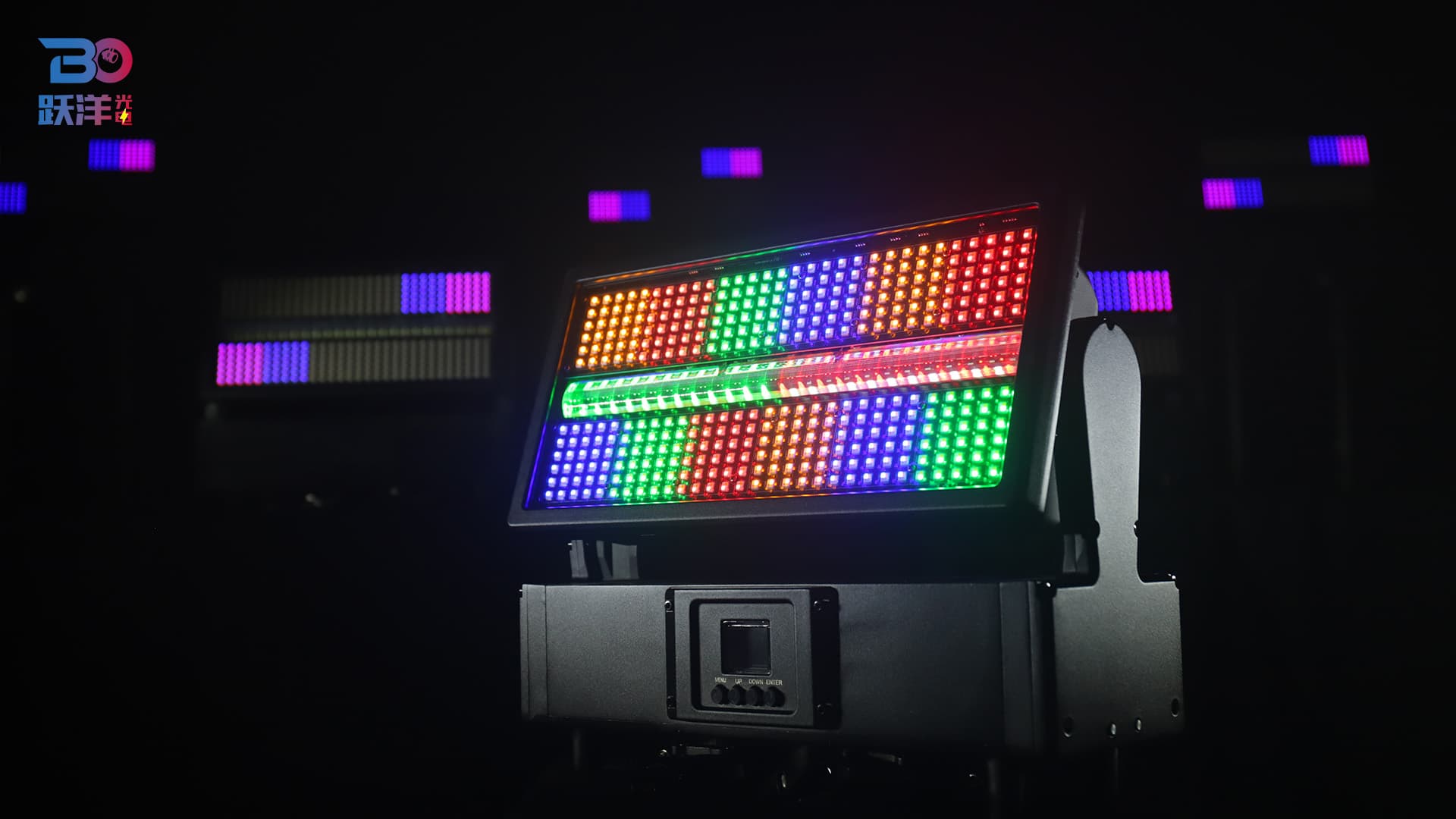

Middle LED bead is divided into 6 areas to control;Both sides LED bead is divided into 12 areas to control.
It integrates wash, beam and strobe 3in1 effect;
Preset multiple effects macro functions
