660DZ-Double Face 6x60W RGBW Pixel LED Moving Head Bar Light with Strobe

Short Description:

660DZ-Double face moving head bar with wash zoom & strobe is a new moving head bar launched by Beyond Lighting in 2021, with Pan and Tilt infinite rotation, it is an updated product of a single-sided 6x 60W moving head bar. One face (wash zoom) is equipped with 6x 60W powerful RGBW LEDs, and the other face (strobe) is equipped with 384x 0.5W 3in1 RGB LEDs and 20x 10W high-brightness white LEDs. With excellent heat dissipation solution, strong beam, pure color wash effect, and high-brightness strobe, it is a multifunctional stage light that can be used for various types of stage effects.


  • Brand: Beyond
  • Model: 660DZ
  • Warranty: 2 Years
  • Email: beyond03@beyond58.com
  • WhatsApp/WeChat: 8613922297736
  • Product Detail

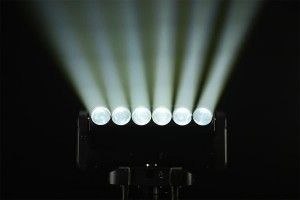

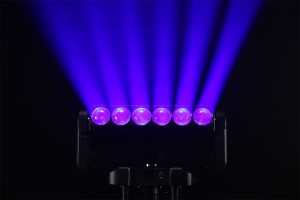

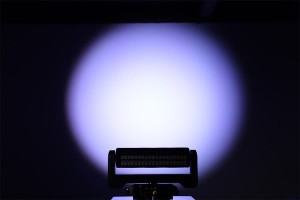

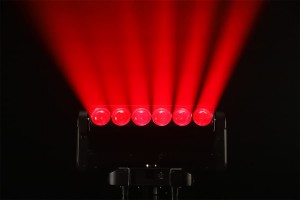

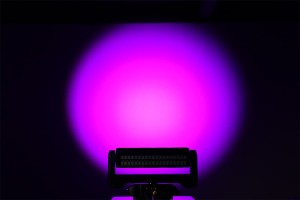

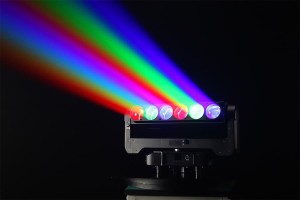

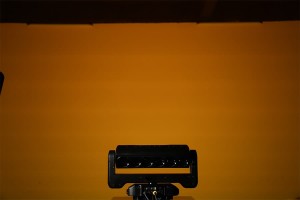

    Double Face Strobe & Wash LED Moving Head Bar

    660DZ-尺码图

    Technical Parameters

    Optics
    • Zoom Wash Face Light Source: 6x60W 4IN1 RGBW LED
    • Strobe Face Light Source: 20x10W white LED +384x0.5W 3in1 RGB LED

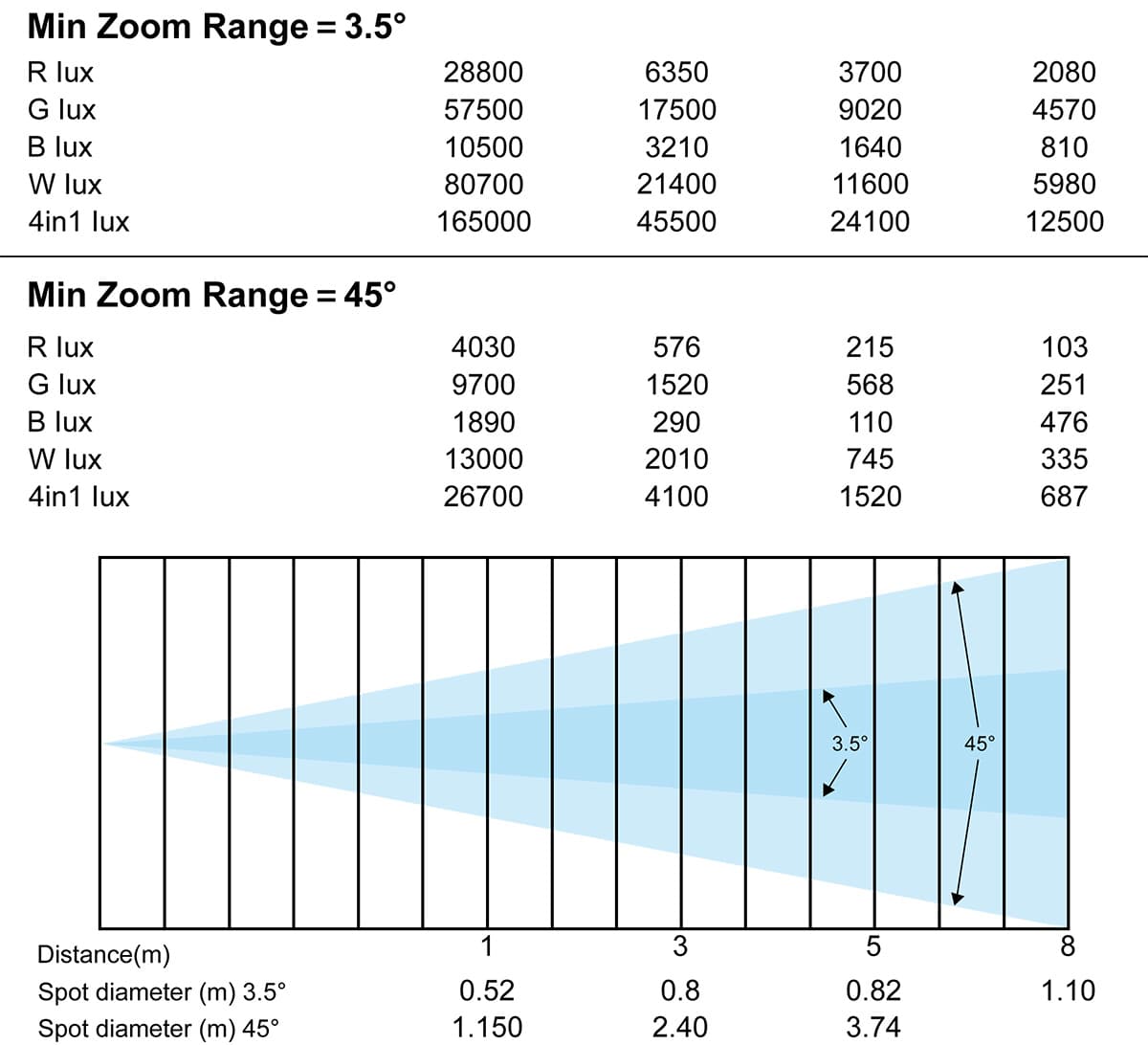

    • Zoom Angle: 3.5 - 45 Degrees
    • PMMA High Quality and High Output Optic
    • Power Consumption: 700 W
    • Power Voltage: AC 100-240 V, 50/60 Hz

    Control
    • DMX Channel: 34/54 Channels
    • Control Protocol: DMX512/RDM

    Pan/Tilt
    • Pan / Tilt: Infinite Rotation
    • Pan/Tilt Resolution: 8/16 bit
    • Magnetic Coded Reset System is Adopted

    Construction
    • Display:1.8 inch 180° reversible colorful TFT Display
    • Data In/Out socket: 3-pin & 5-pin XLR sockets
    • Power Socket: PowerCon in & out
    • Protection Rating: IP20
    • Reset the light fixture by menu or console
    • Equipped with Small and easy to operate Pan & Tilt fix lock
    • Net Weight: 19.5 kg

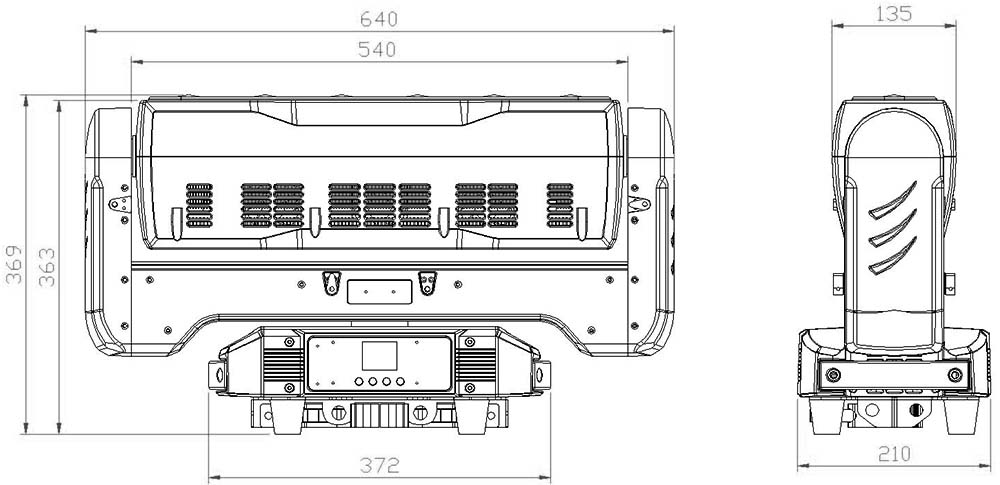

    • Dimensions: 640 mm x 210 mm x 369 mm

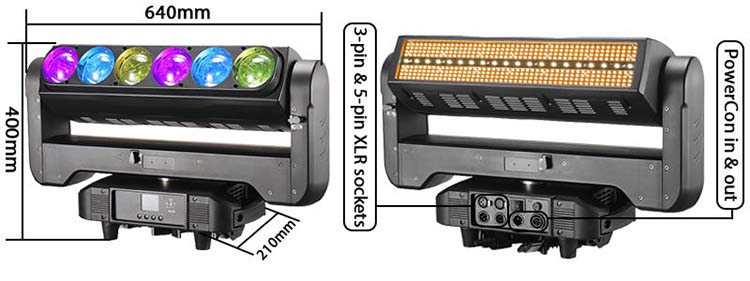

    dimension of moving head bar

    • Carton Packing 1in1 Size: 735 mm x 505 mm x 300 mm
    • Gross Weight: 25 kg

    • Flight Case 1in2 Size: 720 mm x 640mm x 600 mm
    • Gross Weight: 72.5 kg

    Product Application Case

    moving head bar

    WorkShop View

    stage ligthing supplier

    Beyond professional lighting exhibitions

    beyond lighting

    Production application case

    应用场景图-压缩后

    Certifications

    certification 1200
