Quality Inspection for China Stage Light 60W RGBW 4-in-1 LED Studio Light with Zoom IP65

Short Description:

This splicing stage lighting outdoor zoom par pixels effect lighting is a small and versatile lighting fixture that can push any designer’s creativity to the limit. Each fixture comes with 8x60watt LED’s, 4in1 (RGBW), and can be controlled via DMX or RDM protocol. What really separates this fixture from any other similar products is its ability to automatically zoom. While other products have a fixed beam angle, our Z68 is equipped with an automatic zoom from 3.5º-40º while also being (IP-65) outdoor rated. It also comes with a locking hanger which can join several fixtures together in order to create many different combinations such as a blinder grid, vertical/horizontal array while giving the user pixel mapping capabilities. This makes it a very versatile product that can be used as a blinder, strobe, bar, or pixel mapping spotlight. Lastly, its compact size and rugged build allows the Z68 to be used just about anywhere. Also accept customize with lighting frame.

Certification: CE, RoHS

Warranty: 2 years

MOQ: 1 piece

Send email to us Product Manual

Product Detail

Video

Dedicated to strict excellent control and considerate shopper company, our experienced staff members associates are often available to discuss your demands and make certain full buyer pleasure for Quality Inspection for China Stage Light 60W RGBW 4-in-1 LED Studio Light with Zoom IP65, Our intention would be to assistance customers know their aims. We’ve been producing good endeavours to achieve this win-win predicament and sincerely welcome you to definitely sign up for us.
Dedicated to strict excellent control and considerate shopper company, our experienced staff members associates are often available to discuss your demands and make certain full buyer pleasure for China LED Stage Lighting, LED PAR, Our company follows laws and international practice. We promise to be responsible for friends, customers and all partners. We would like to establish a long-term relationship and friendship with every customer from all over the world on the basis of mutual benefits. We warmly welcome all old and new customers to visit our company to negotiate business.

Splicing stage lighting outdoor zoom par pixels effect lighting

One control box can control with 8 unit par light, four side can be easily spliced, can be combined to create a variety of shapes on the stage. Also accept customs lighting frame as in below example photos. Standard configuration is 1 control box+ 8 lights+ connectors and cables.

led par
led par

Technical Parameters

Optics		Construction
Led source	60W RGBW 4-in-1 LED	Display	180°reversible 2.4-inch LCD color display(Chinese or English)
Beam angle	3.5°- 40°	Data In/Out socket	waterproof 5-pin XLR sockets(24V power + signal line)
Power Consumption	550W	Power Socket	PowerCon in/out 3-pin
Control		Protection Rating	IP65
Control Modes	DMX512/mater-Slave/Auto Run/Music/Manual/RDM	Specification
DMX mode	23/28/42/50/56 Channels
Features		Standard package:carton;Flight case in optional
1>LED single control		Single led size: 181x140x140mm
2>One control box (not waterproof) controls eight belts for focusing,which can be connected 4 units in series at 230V(32PCS lights),and 2 units in series at 120V(16pcs lights).		Single led weight: 1.88kgs
Single led control, zoom effect, ArtNet control , infinite Pan and tilt rotation.		Single led with hanger weight: 2.44kg
3>A control box (not waterproof) controls eight 60W4in1 die-casting heads with focus and waterproof, supporting point control,Can be installed separately by hangers, can be assembled in multiple		Control box weight: 2.59kgs
4>The control line is a 3M long silicone cable, and Seetronic 5-core waterproof connector (the cable connecting the lamp holder to the control box)		Certification
5>High-efficiency optical system ,Super beam effect plus zoom		CE,ROHS

Z68

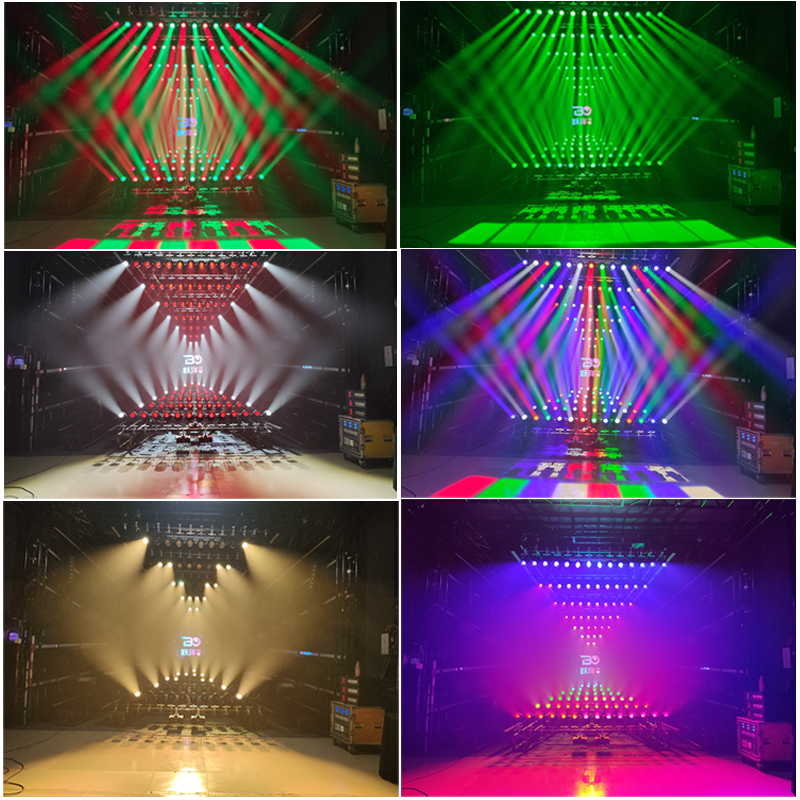

Product Effect

FAQ

Q: How many days usually take on shipping?

Re: It depends on the shipping way, by express door to door service usually takes 3-7 work days; By air usually take 5-7 days; By sea depends on the area and distance, except Asia, usually takes around 25-40 days.

Q: What payment way we can choose to transfer money to you?

Re: TT bank or Western Union.

Q: How can I track my goods after I sent you deposit?

Re: During production, we will send you photos or video to show how them assembly in workshop, and send you photos before shipping, then give you tracking No. after sent.

Dedicated to strict excellent control and wash stage lighting company, our experienced staff members associates are often available to discuss your demands and make certain full buyer pleasure for Quality Inspection for China Stage Light wash zoom par lights LED Studio Light with Zoom, Our intention would be to assistance customers know their aims. We’ve been producing good endeavours to achieve this win-win predicament and sincerely welcome you to definitely sign up for us.
Quality Inspection for China LED Stage Lighting, LED PAR, Our company follows laws and international practice. We promise to be responsible for friends, customers and all partners. We would like to establish a long-term relationship and friendship with every customer from all over the world on the basis of mutual benefits. We warmly welcome all old and new customers to visit our company to negotiate business.
