Ring Control 24x60W RGBW Beam Zoom Led Wash Moving Head
2460Z RGBW Led Zoom Moving Head Light with Circle Control
Technical Specifications
| Light Sources | 24x60W4IN1 RGBW LED |
| Led 3 ring control effect | Average lifespan> 50000 hours |
| Power factor PF≥0.95 | Glass light guide + PMMA high quality optical lens |
| Power Consumption | 1500W |
| Beam Angle | 3.5°- 45° |
| Power Voltage | AC 100-240V, 50/60Hz |
| Net Weight | 23.5 kg |

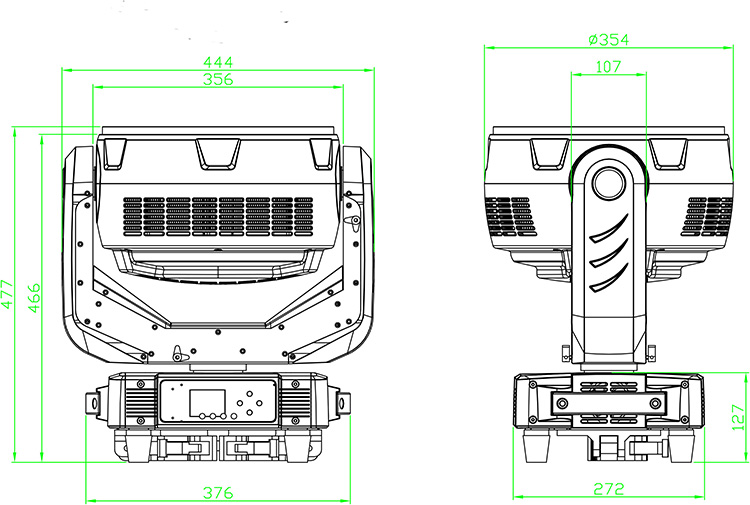

| Dimension | 444mm×376mm×573mm |
| Working temperature | -10℃～45℃ |
Control
• DMX Channel:20/24/32/44 Channels
• Control Protocol: DMX512/RDM
Pan/Tilt
• Pan : 540° ,accuracy 2.11°/step, fine-tuning accuracy: 0.008°;
• Tilt : 270°,accuracy 0.86°/step, fine-tuning accuracy: 0.0034°;
• Using magnetic coded reset system
Construction
• Display:2.4-inch TFT color display;Chinese and English languages can be switched,180° reversible TFT Display
• Data In/Out socket: 3-pin & 5-pin XLR sockets
• Protection Rating: IP20
Electronic control technology:
• Menu or console control lamp reset;
• 0-100% dimming;
• Constant current drive mode;
• Temperature sensor detection, intelligent adjustment of Led power;
• Light work information can be read on menu;
• Intelligent fan speed control
